Rex C Standalone Controller

STANDALONE Access Controller

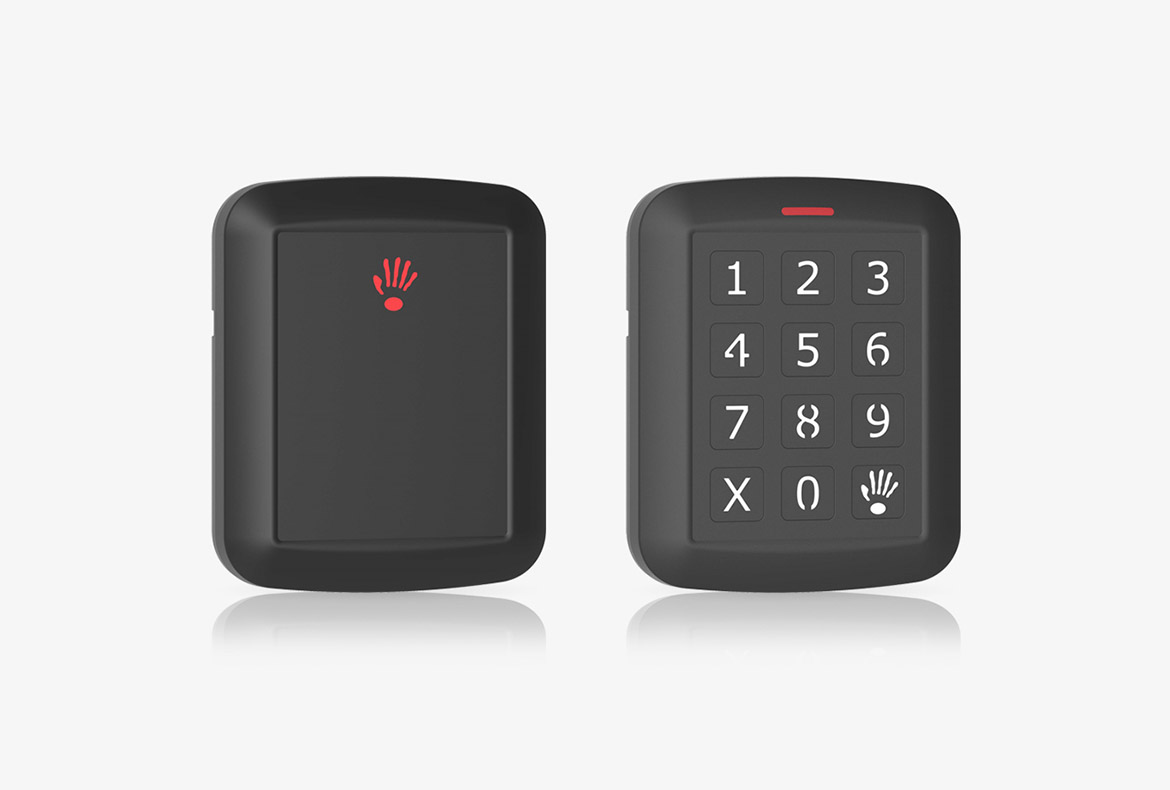

The standalone access controllers Rex C with integrated card reader (type O) and with numeric keypad (type K) are used in advanced systems for access control. The integrated real-time clock enables setting time limitations to user access rights. They can be used for opening doors, barriers, gates, lifts, for switching on/off alarm systems, etc. They can also be converted to an advanced receiver with 26-bit Wiegand output.

FEATURES

Integrated contactless card reader with 125 kHz or 13,56 MHz reading frequency
Can store up to 1000 users and 10.000 events
Operating temperature: from -20 °C to +70 °C
IP65 – suitable for outdoor installation
Dimensions: 73 x 90 x 22 mm
Reading range: up to 7 cm
Status signalization with controller LED and buzzer signals
Integrated real-time clock enables time limitation of user access rights

PROGRAMMING

Set-up programming of the Rex C standalone controllers can be made with a master card or master code. In advanced mode the controllers can be connected with the Blocker or Codeks software. The Rex C standalone controllers can save up to 1000 users and 10.000 events.



MODELS
REX O-1-C Rex in O-C box, 125 kHz
REX K-1-C Rex in K-C box, 125 kHz
REX O-3-C Rex in O-C box, 13,56 MHz
REX K-3-C Rex in K-C box, 13,56 MHz



Download
Datasheet Rex C Download

,
