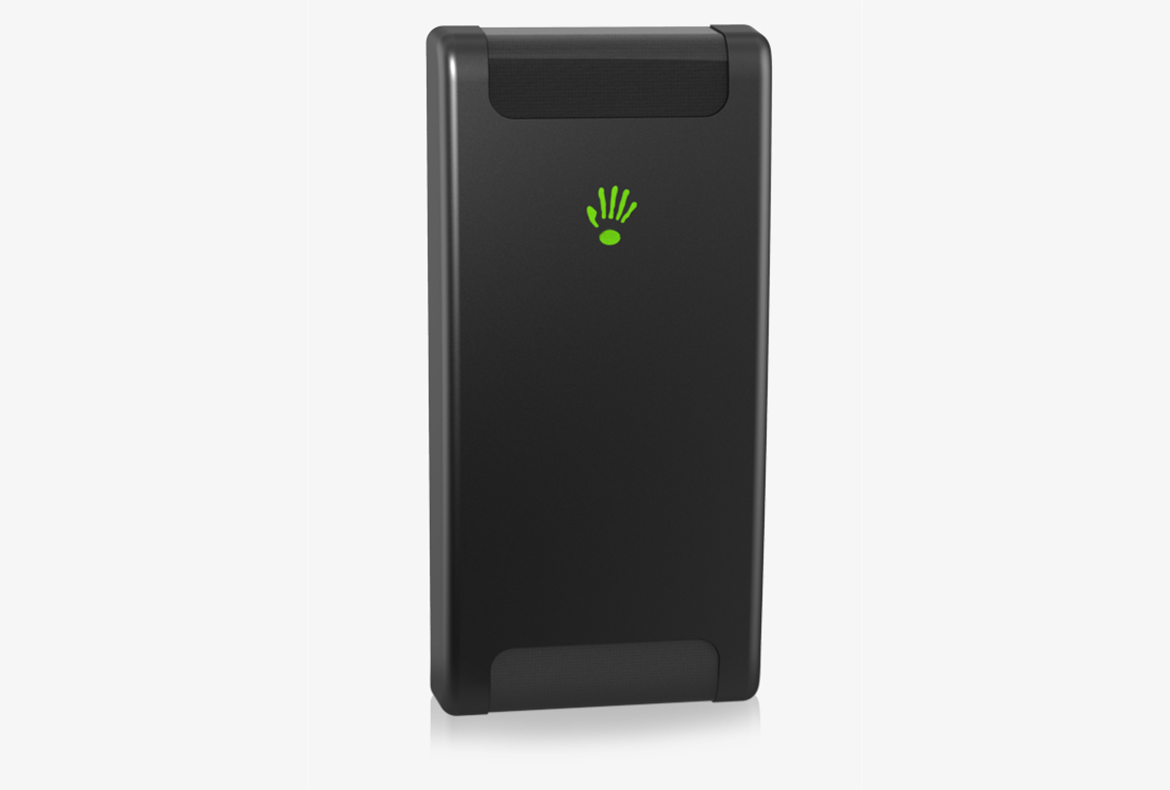

Rex B Standalone controller

STANDALONE Access Controller



The standalone access controllers Rex B with integrated card reader (types A and O) and with numeric keypad (only type K) are used in advanced systems for access control. The integrated real-time clock enables setting time limitations to user access rights. They can be used for opening doors, barriers, gates, lifts, for switching on/off alarm systems, etc. They can also be converted to an advanced receiver with 26-bit Wiegand output.

FEATURES



Integrated contactless card reader with 125 kHz or 13,56 MHz reading frequency
Can store up to 1000 users and 10.000 events
Operating temperature: from -20 °C to +70 °C
IP65 – suitable for outdoor installation

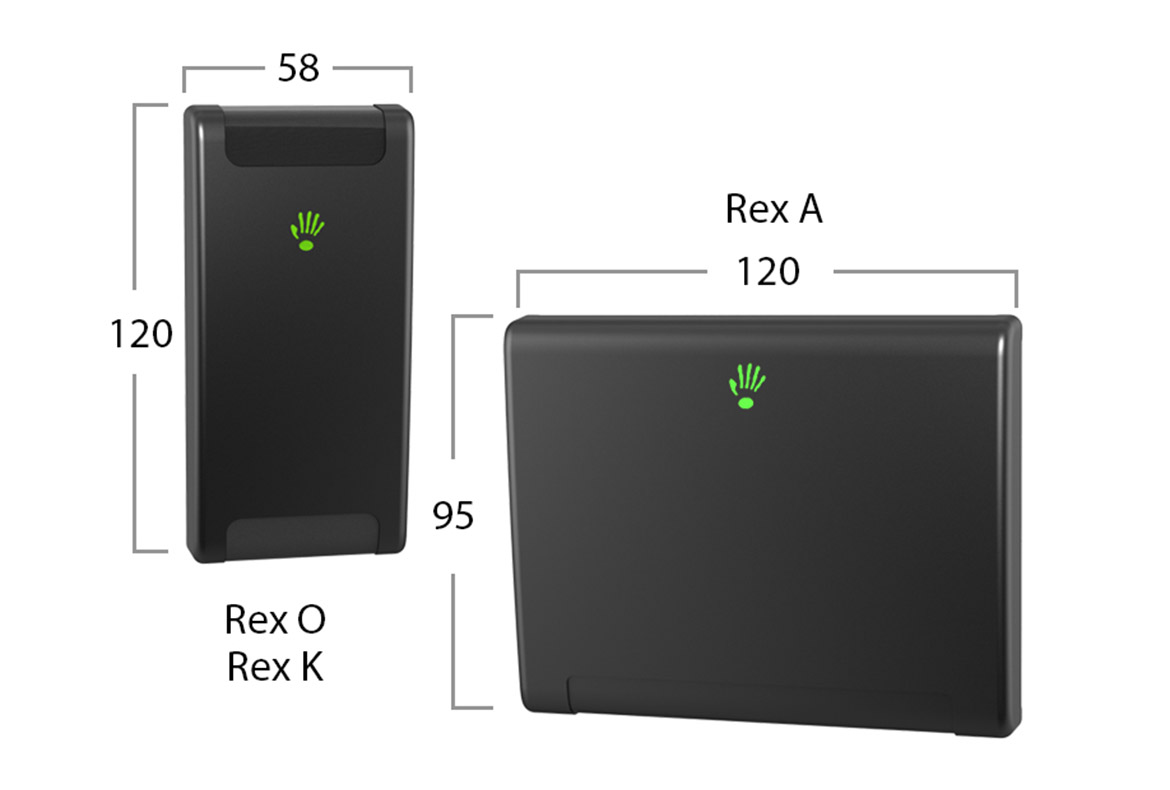

Dimensions: 120 x 95 x 15 mm (Rex A),
58 x 120 x 15 mm (Rex O),
58 x 120 x 18 mm (Rex K)
Reading range: from up to 10 or 13 cm
Status signalization with controller LED and buzzer signals
Integrated real-time clock enables time limitation of user access rights



MODELS
REX A-1-B Rex in A-B box, 125 kHz
REX O-1-B Rex in O-B box, 125 kHz
REX K-1-B Rex in K-B box, with keypad, 125 kHz
REX A-3-B Rex in A-B box, 13,56 MHz
REX O-3-B Rex in O-B box, 13,56 MHz
REX K-3-B Rex in K-B, with keypad, 13,56 MHz



Download
Datasheet Rex B Download

,
