Regis Z

Regis Z

PORTABLE TIME AND ATTENDANCE REGISTRATOR

Portable time and attendance registrator

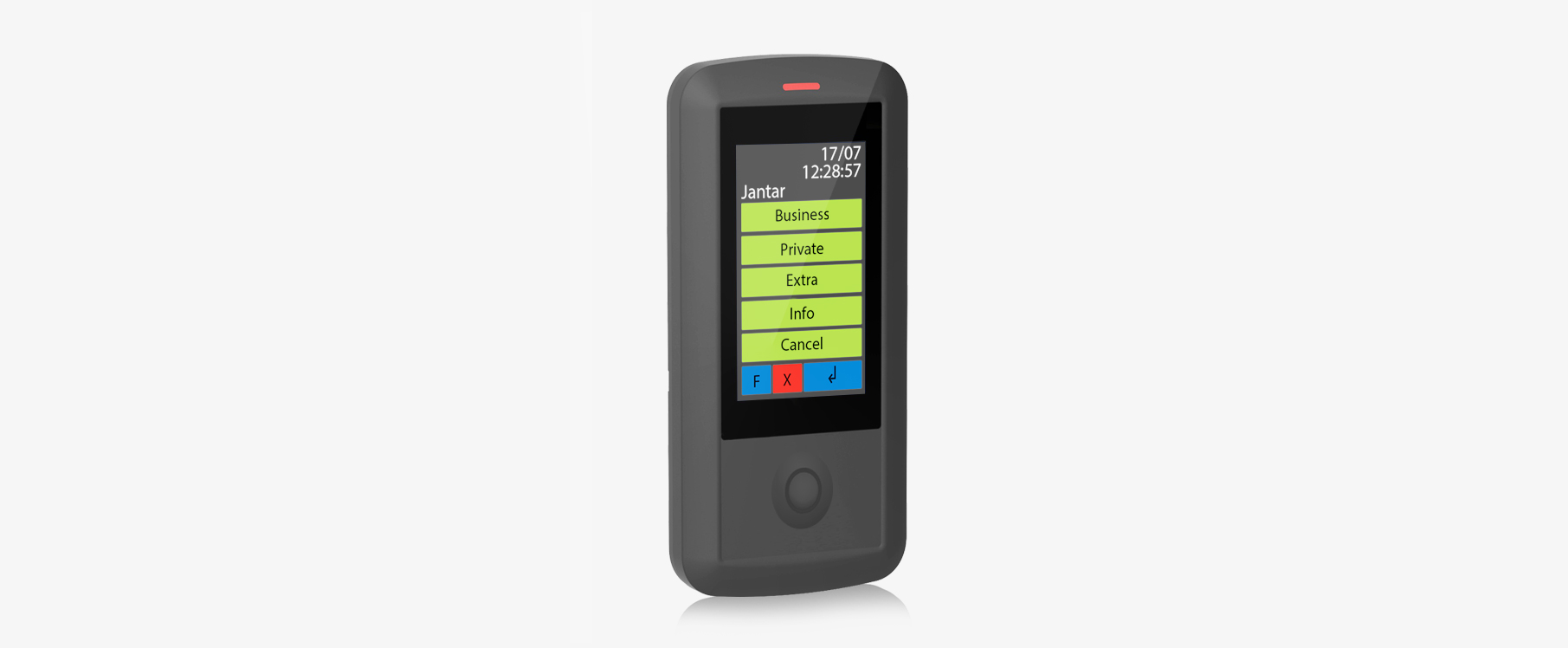

Regis Z is a portable controller for registering working hours on temporary facilities in remote locations, construction sites, etc. It has a full-color 3″ LCD touchscreen, a built-in reader with reading frequencies 125 kHz or 13.56 MHz and a powerful internal memory that allows storing data for up to 30,000 users and 100,000 events. It allows you to record data in off-line mode and subsequently transfer and synchronize the recorded data over a wireless network (wi-fi). The built-in battery can be charged with the supplied wireless charger.

FEATURES

  • Can be used as a portable time and attendance registrator
  • Built-in card reader for 125 kHz or 13,56 MHz reading frequency
  • Can store up to 30,000 users and 100,000 events
  • Operating temperature: from -20 °C to +70 °C
  • Wi-fi interface for wireless communication
  • suitable for standard Qi wireless charging
  • Dimensions: 73 x 143 x 22 mm
  • Reading range: up to 10 cm (for 125 kHz) or up to 7 cm (for 13,56 MHz)
  • Status signalization with controller buzzer signals and button color change

Wireless communication (Wi-fi)

The controller has a Wi-Fi interface which allows the transmission and synchronization of events recorded in offline mode through a wireless connection.

Low consumption and wireless charging

The portable controller Regis Z has a powerful built-in battery (1.2Ah) and a low power consumption. With power consumption 3W (in ECO mode: 2W) and operating temperature from -20°C to +70°C is really a remarkable piece of hardware architecture. The controller can be charged wirelessly using the supplied wireless charger or any charger that meets the Qi standard for wireless charging.

Ordering codes



Code Specification
REGIS Z-1-B Regis in Z-S box, 125 kHz
REGIS Z-3-B Regis in Z-S box, 13,56 MHz
