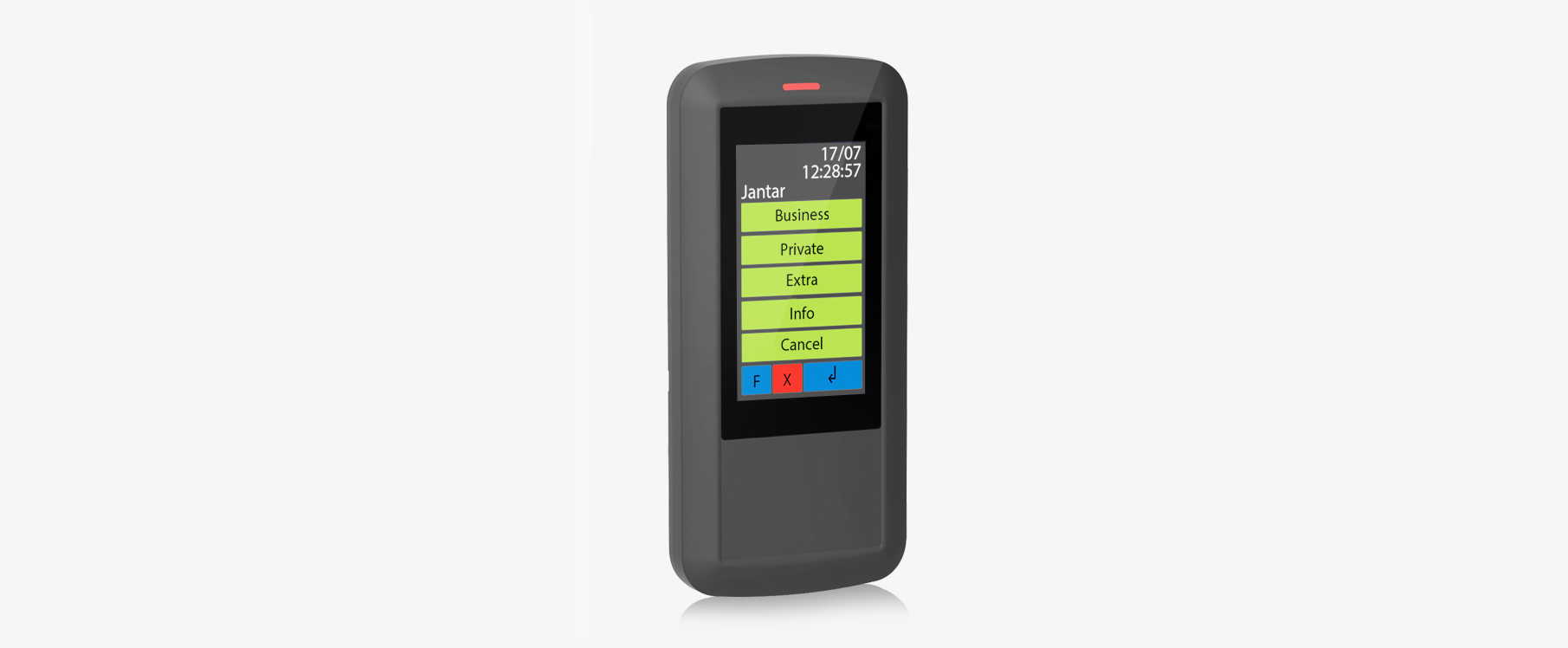

Regis S

Regis S

T&A CONTROLLER, ACCESS CONTROLLER OR STANDALONE ACCESS CONTROLLER

Controller with touch screen

Regis S is a powerful access or T&A controller with a full-color backlit 3” LCD touch screen. Its keypad layout can be completely customised and it comes equipped with a built-in card reader with a 125 kHz or 13,56 MHz reading frequency. The Regis S can store up to 30.000 users and 100.000 events.

FEATURES

  • Can be used as an access controller, T&A controller or standalone controller
  • Built-in card reader for 125 kHz or 13,56 MHz reading frequency
  • Can store up to 30.000 users and 100.000 events
  • Operating temperature: from -20 °C to +70 °C
  • IP21 – suitable for indoor installation
  • Dimensions: 73 x 143 x 22 mm
  • Reading range up to 10 cm
  • Status signalization with controller buzzer signals and button color change

Full-color screen

Regis S has a full-color backlit 3” LCD touch screen. It has multi-keypad layout support and the keypad appearance can be additionally customised with the Codeks Keypad Editor application.

Built-in card reader

Regis S is equipped with a built-in card reader with a reading frequency of 125 kHz or 13.56 MHz.

Powerful hardware

With great power comes great capability. Let us just name some: FLASH memory for up to 30.000 and 100.000 events, RS485 and TCP/IP communication support, accelerometer (anti-tamper alarm) and optional GSM / WiFi interface, Real Time Clock with battery back-up, etc.

ow consumption

The all-new Jantar-designed hardware architure is powerful but not power hungry. With power consumption 3W (in ECO mode: 2W) and operating temperature from -20°C to +70°C is really a remarkable piece of hardware architecture.

Ordering codes



Code Specification
REGIS S-1-B Regis in S-S box, 125 kHz
REGIS S-3-B Regis in S-S box, 13,56 MHz



Download
Datasheet Regis S Download
