Regis H

Regis H

T&A CONTROLLER, ACCESS CONTROLLER OR STANDALONE ACCESS CONTROLLER

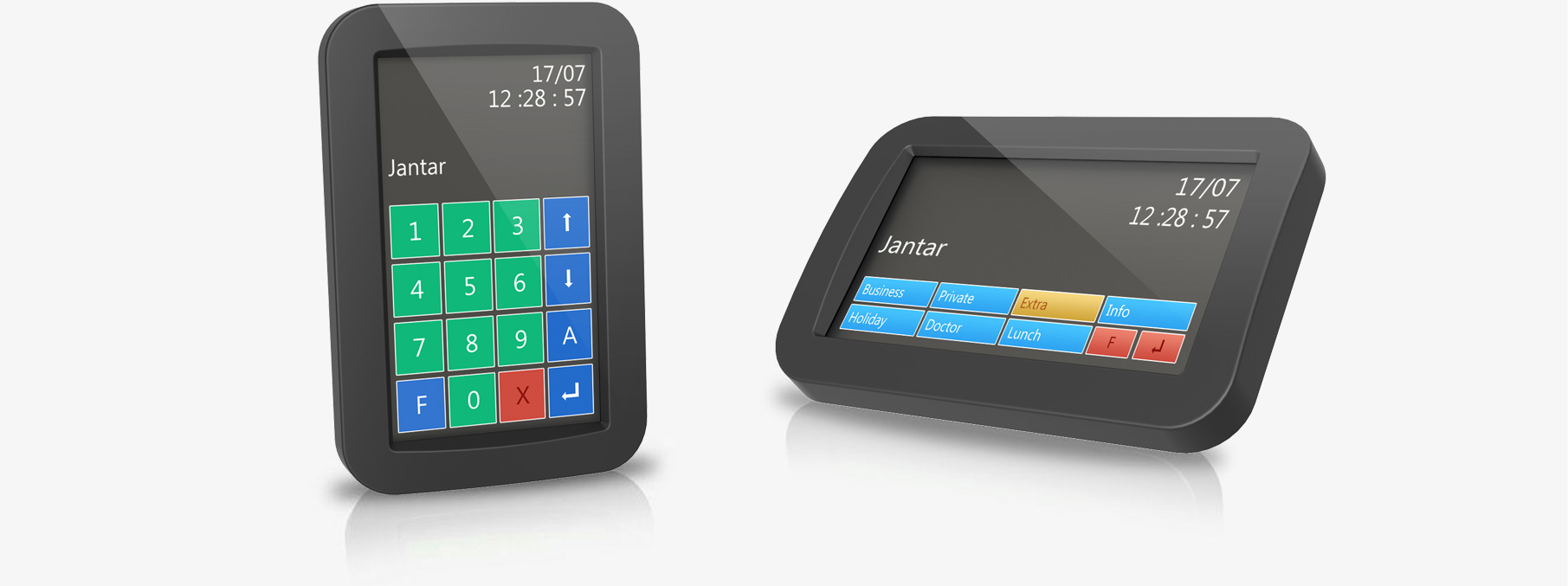

Full-color screen

Regis H has a full-color backlit 4,3” LCD touch screen. The controller can be mounted vertically or horizontally and its keypad layout can be custom defined.

FEATURES

  • Can be used as an access controller, T&A controller or standalone controller
  • Backlit 4,3” LCD touch screen (resolution: 480 x 270 px)
  • Vertical or horizontal mounting position
  • Built-in card reader for 125 kHz or 13,56 MHz reading frequency
  • Can store up to 30.000 users and 100.000 events
  • Operating temperature: -20 °C do +60 °C
  • IP21 – suitable for indoor installation
  • Dimensions: 85 x 126 x 19 mm
  • Reading range up to 10 cm

Powerful hardware

With great power comes great capability. Let us just name some: FLASH memory for up to 30.000 and 100.000 events, RS485 and TCP/IP communication support, accelerometer (anti-tamper alarm) and optional GSM / WiFi interface, Real Time Clock with battery back-up, etc.

Low consumption

The all-new Jantar-designed hardware architure is powerful but not power hungry. With power consumption 3W (in ECO mode: 2W) and operating temperature from -20°C to +60°C is really a remarkable piece of hardware architecture.

Ordering codes



Code Specification
REGIS H-1-B Regis in H-B box, 125 kHz
REGIS H-3-B Regis in H-B box, 13,56 MHz



Download
Datasheet Regis H Download
