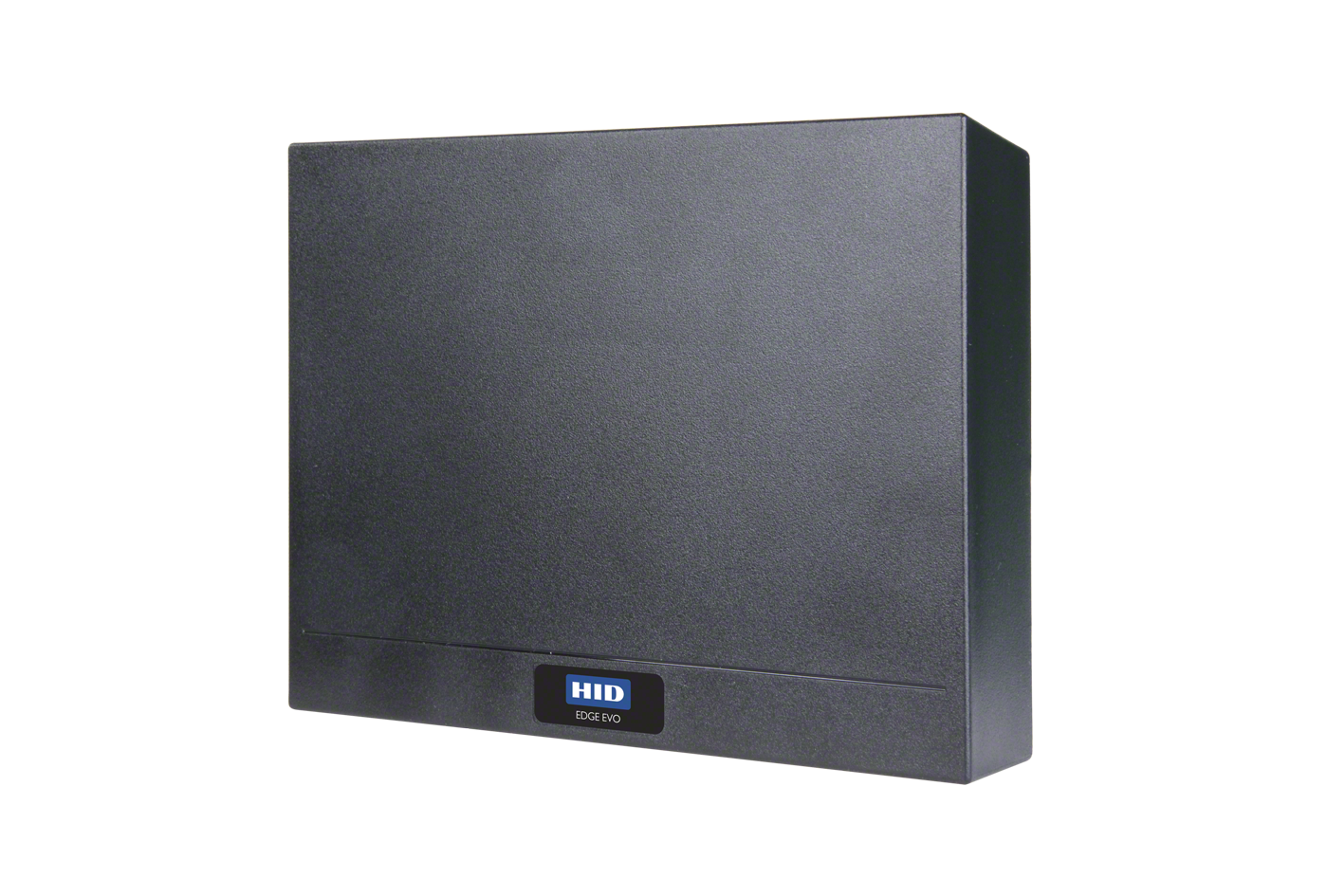

HID® EDGE EVO® Solo ESH400-K

HID® EDGE EVO® Solo ESH400-K

OVERVIEW

HID Global’s EDGE EVO Solo ESH400-K Networked Controller is a cost-effective, stand-alone, IP-enabled access control solution that is designed for sites with one or two doors utilizing traditional door hardware in an outdoor environment. Distributing intelligence right to the door, the solution provides the ability to power all devices around a door using Power over Ethernet (PoE), significantly reducing total door installation costs by eliminating the need to install a separate power supply. It also utilizes less expensive CAT5 wiring compared to traditional structured cable.The ESH400-K is a single door controller with native interfaces to four inputs, two outputs and a single Wiegand reader. The controller is optimized for interoperability with any Wiegand or Clock-and-Data reader (sold separately). The CAT-5 cable is routed to the ESH400-K which is designed to be located near the door in a secure area, and all door components are wired in a star-network like fashion directly to the controller. The ESH400-K is an ideal solution for securing a single door that uses traditional door components. The model meets an organization’s needs of working with any Wiegand reader located either outdoors or indoors.



SPECIFICATIONS
  • Model (and Part #): ESH400-K (83000CKE)
  • Mounting Holes: US Double-gang, US Single-gang and EU / APAC 60mm
  • Dimensions: 6.1″ W x 4.8″ H x 1.5″ D (154.9 mm x 122.5 mm x 37.1 mm)
  • Weight: 11.3oz (320g)
  • Operating Temperature: 32° to 122° F (0° to 50° C)
  • Operating Humidity: 5% to 95% relative, non-condensing
  • Communication Ports: Ethernet (10/100), Hi-O CANbus, Wiegand or Clock-and-Data
  • Warranty: Warrantied against defects in materials and workmanship for 18 months (See complete warranty policy for details).
  • DC Input (MAX) @ PoE: 14.4W (300mA @ 48VDC)
  • DC Input (MAX) @ AUX +12VDC:18W (1500mA @ 12VDC)
  • DC Input (MAX) @ AUX +24VDC: 36W (1500mA @ 24VDC)
  • Supervised Inputs Power (MAX) : 0.025W (5mA sink, 5V nominal) 0 to +5VCD Ref
  • DC Input @ PoE: 9.6W
  • DC Input @ AUX +12VDC:14.4W
  • DC Input @ AUX +24VDC: 28.8W
  • Hi-O CANbus Output Voltage, DC Input = PoE: 24VDC
  • Hi-O CANbus Output Voltage, DC Input = AUX: AUX +VDC



Download
Datasheet SOLO ESH400-K Download

,
