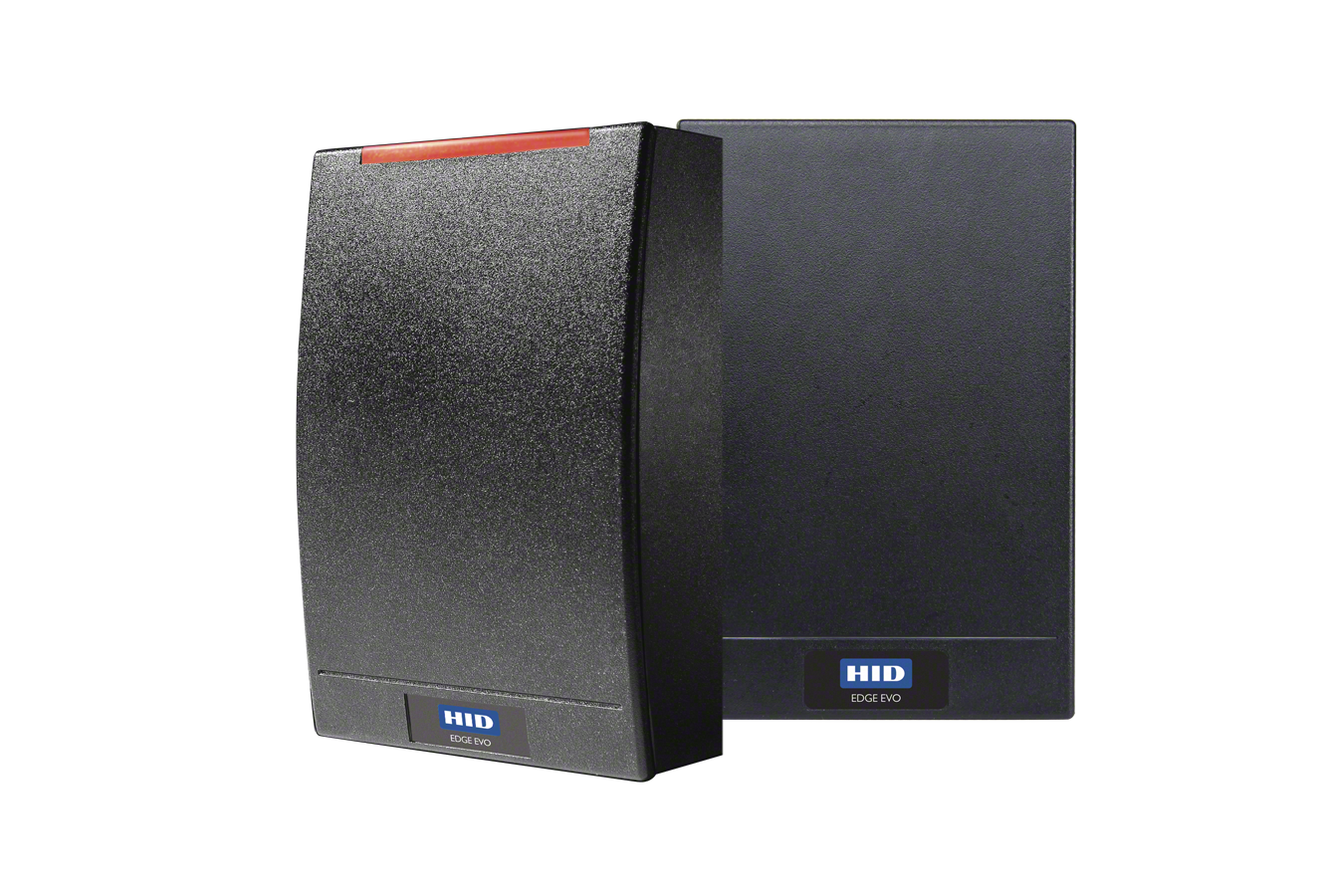

HID® EDGE EVO® EHR40-K Controller/Reader and Module

OVERVIEW
Enabling cost effective installation and high performance access control functionality, the EDGE EVO® EHR40-K Controller/Reader and Interface Module package is a single-door access control panel with reader and separate discrete door interface. The HID® EDGE EVO® EHR40-K controller/reader  is installed at the door and the Hi-O Interface Module is mounted separately in a secure location.



SPECIFICATIONS

Model (and Part #): EHR40-K (82120CKI0001A)Mounting Holes: US Single-gang and EU / APAC 60mm

Dimensions – EHR40: 3.3″ W x 4.8″ H x 1.2″ D (83.9 mm x 122.2 mm x 30.5 mm)

Dimensions – EDM-M: 3.3″ W x 5.0″ H x 1.5″ D (84.0 mm x 127.0 mm x 37.0 mm)

Weight – EHR40: 6.3oz (180g)

Weight – EDM-M: 4.9oz (140g)

Operating Temperature: 32° to 122° F (0° to 50° C)

Operating Humidity: 5% to 95% relative, non-condensing

Communication Ports: Ethernet (10/100), Hi-O CANbus

13.56 MHz Card Compatibility: 13.56 MHz iCLASS HID Application, ISO14443A CSN

Warranty: Warrantied against defects in materials and workmanship for 18 months (See complete warranty policy for details).

DC Input (MAX) @:

  1. PoE: 14.4W (300mA @ 48VDC)
  2. AUX +12VDC:18W (1500mA @ 12VDC)
  3. AUX +24VDC: 36W (1500mA @ 24VDC)

Supervised Inputs Power (MAX) : 0.025W (5mA sink, 5V nominal) 0 to +5VCD Ref

DC Input @:

  1. PoE: 8W
  2. AUX +12VDC:13.1W
  3. AUX +24VDC: 26.6W

Hi-O CANbus Output Voltage, DC Input = PoE: 24VDC

Hi-O CANbus Output Voltage, DC Input = AUX: AUX +VDC
