Xpass D2

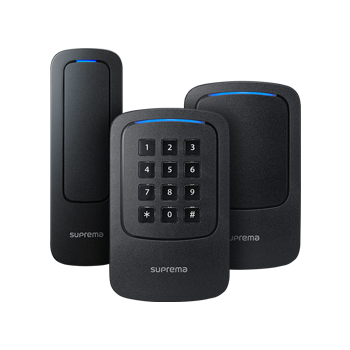

XPass D2 is an outdoor compact RFID reader based on Suprema’s state-of-the-art RFID technology and multi-hardware platform, optimized for centralized access control systems such as Suprema’s CoreStation. Using multi-form factor technology, mullion-type, gangbox-type and gangbox keypad-type are all supported. With dual-frequency (125kHz / 13.56MHz) RFID technology, XPass D2 also supports mobile cards using NFC and BLE, the latest mobile communication technologies. Packed in a rugged IP65/IP67 rated dust & waterproof performance as well as IK08 rated vandal-proof structure, suitable for tough environments and outdoor installations.
FEATURES
Dual Frequency, Multi-Smartcard Reader
Featuring dual-frequency RFID card technology, XPass D2 supports both LF(125KHz) and HF(13.56MHz) RFID including all RFID card standards. On top of fingerprint credential, it supports most types of RFID card standards with a single device including 125 Khz EM, Wiegand format card, 13.56 Mhz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, NFC, and BLE.
Communicates with SmartphonesWith BioStar 2 Mobile card, as a credential, your smartphone is a key to access.
- BLE (Bluetooth Low Energy)
- Communicates through BLE in Android
Protecting data communications by algorithmization of AES 128 bit encryption
- NFC (Near Field Communication)
- Communicates through NFC’s HCE in Android
*note that HCE in available from all Android mobiles. It is recommended to check the mobile spec, but it is supported mostly latest models.
Protecting data communications by algorithmization of AES bit encryption
- BLE (Bluetooth Low Energy)
- Communicates through BLE in iOS
Protecting data communications by algorithmization of AES 128 bit encryption
Standardized Communications
- Open Supervised Device Protocol (OSDP)
- Combined with Suprema’s intelligent biometric controller, the CoreStation, the device completes biometrics-driven access control system with enhanced simplicity and level of security of centralized system topology.
Mullion-type Design
- With its 48mm width, it perfectly fits in narrow spaces and door frames.
Gangbox-type Design
- XPass D2 offers complete installation in Gangbox locations. You can choose either Gangbox-type or Gangbox Keypad-type depending on your needs.
IP65, IP67, Dust & Water Proof
- XPass D2 offers superior ingress protection with its IP65, IP67 rated rugged structure. The device provides superior protection against invasive moisture, dust and even liquids. This protection is achieved with meticulous sealing and extra protective engineering from Suprema. No matter how harsh the environment, XPass D2 is the ideal choice for outdoor applications.
IK08 Vandal-proof Structure
- The XPass D2 comes with a robust, vandal-resistant housing. Combining reinforced resin with Suprema’s sophisticated engineering, the device is able to withstand a high level of impact, making it vandal-resistant. Coupled with IK08 ingress protection, XPass D2 is a perfect solution for outdoor applications.
Download
| Datasheet XPass D2 | Download |
