NEO Keymanager


Neo Key Management System

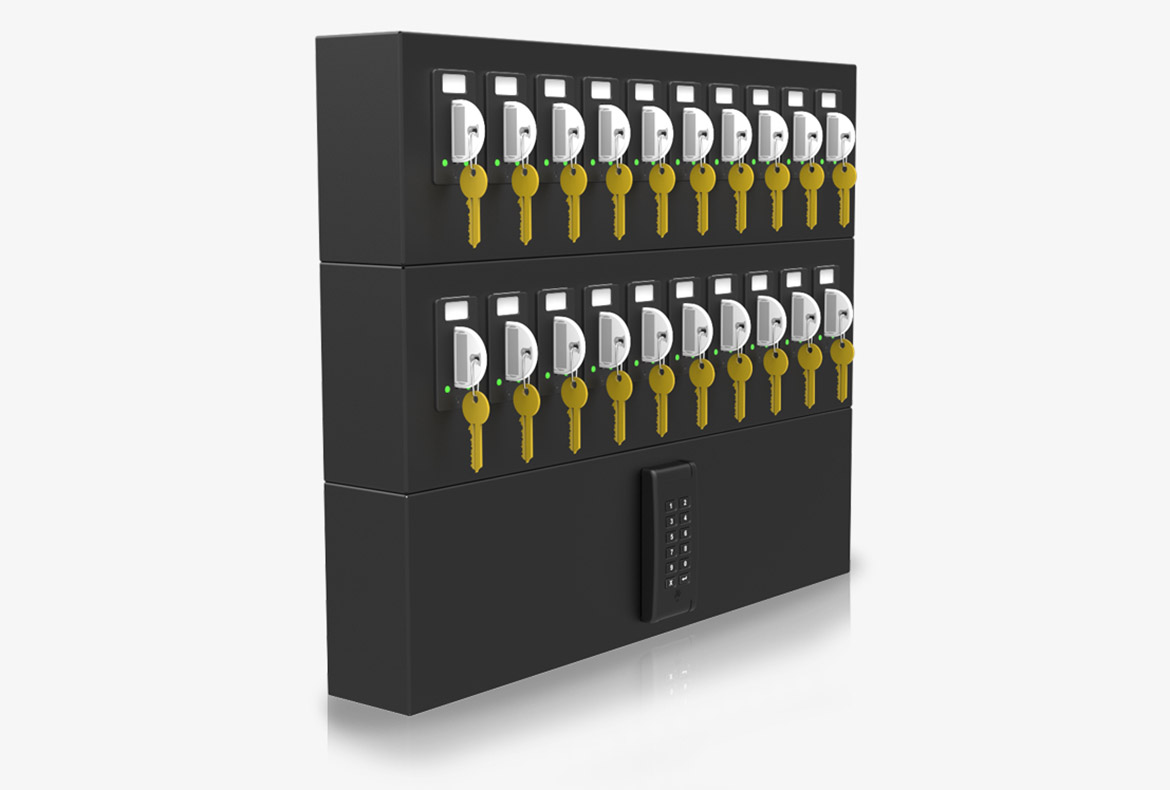

The NEO Keymanager system can be used as a standalone unit or integrated into Jantar’s access control systems, controlled by the Codeks access control software. The NEO Keymanager system is modularly built, which means that the number of key issuing units can be adjusted to your specific needs. It is also simple to subsequently add additional key issuing units.

Standalone key management system or
key management system integrated into advanced access control systems
Operating temperature: from +5 °C to +55 °C
Dimensions of master and each key issuing unit: 550 x 150 x 80 mm
IP21 – suitable for indoor installation
Modular build for easy customisation or subsequent upgrading
Optional backup battery
Anti-tamper alarm

Modular build

The Neo system is comprised of individual units and this enables free customization of your key management system:

  • master unit (NEO M-0-NET) with a 40 W power supply can supply power for up to 8 key issuing units,
  • key issuing unit (NEO K-10) can house up to 10 keys,
  • set of 10 key tags (TAGS NEO-1, TAG NEO-3-M ali TAGS NEO-3-D),
  • a reader for user identification (connected to the master unit, must be oredered separately).
Key tags

The contactless key tags (125 kHz or 13,56 MHz) create a physical barrier against unauthorised key use and also trigger an anti-tamper alarm.

Datasheet Keymanager Download
