Populus P-16

Access Controller

The relay controller Populus P-16-B enables the use of a single reader to control up to 16 relays. It is designed for controlling elevators, unlocking wardrobe cabinets, lockers for storing small arms, medicines, documents, special tools, etc. It can store up to 30,000 users and 100,000 events.


16 relay connections
Can store up to 30,000 users and 100,000 events
Operating temperature: from -20 °C to +40 °C
IP21 – suitable for indoor installation
Dimensions: 222 x 222 x 80 mm
RS-485 + TCP/IP communication converter
It is possible to combine multiple controllers into a single system and thus control
a larger number of relays or devices (for example: by combining one reader and
four relay controllers, you can control an elevator in a 64-storey building or
64 wardrobe cabinets)
Connection for up to 1 protocol, direct or Wiegand reader
Status signalization with LED light signals

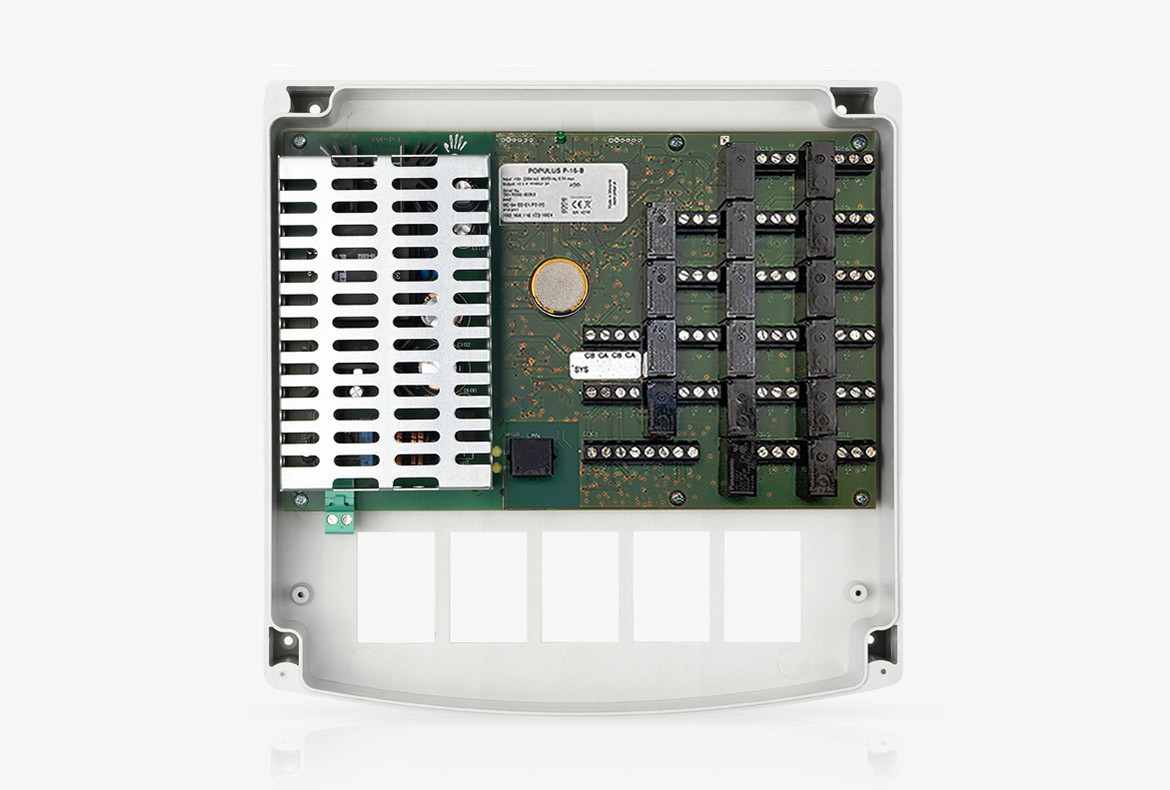

POPULUS P-16-B Access controller with 16 relay connections and 1 output for a protocol, direct or Wiegand reader
